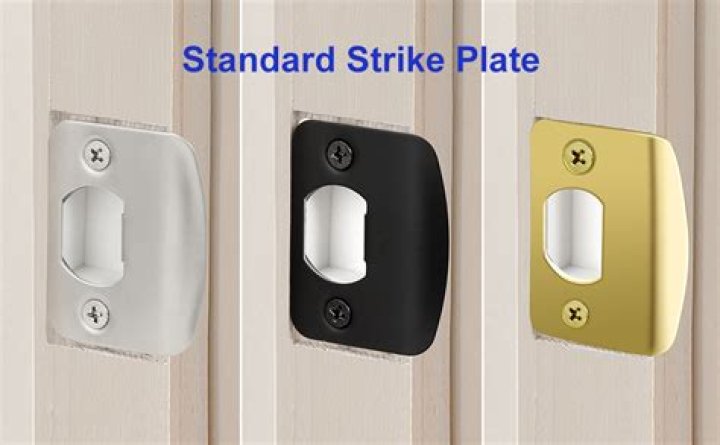

What is a lock strike plate

The strike plate is the little plate that goes in the door jamb where the latch or plunger would lock into. This piece is pretty important believe it or not. Without it, you wouldn’t be able to tap the door and it automatically lock into place.

What is the purpose of strike plate?

The strike plate attaches to and protects the door jamb. This is the plate the latch-tongue, or deadbolt-tongue will connect with. It should sit flush with the door jamb. Any passage or privacy set needs to have a strike plate for the door to latch.

Do deadbolts come with strike plate?

Many brands of deadbolt locks come with extra reinforcement plates, longer anchor screws and even a steel cup, or “strike-box” as we call it in the trade.

Where is the strike plate on a door?

A strike plate is the metal plate that fits into the doorjamb where the area has been morticed and fitted with a dust socket and keep. When the internal door is closed, the latch bolt extends into the hole in the strike plate and holds the door closed.

What is the hole in the strike plate called?

Box & Strike Plate The bolt extends from the cylinder into a small square shaped hole—this is the “box”.

What is the hole called that a lock goes into?

The latch bore, also known as the edge bore, is the hole drilled from the side of the door into the cross bore to allow the latch of the lock to be installed and to accommodate the sliding of the deadbolt. The diameter of the latch bore is generally 1” to accommodate bolts from either mechanical or electronic locksets.

What is a deadbolt strike?

Deadbolt Strike: It basically covers the part of the jamb where the hole would be and the bolt would lock into place. Dresses it up a bit. Most of the hardware comes standard with the full lip strike, but are available with pretty much any of the styles listed upon request.

What is a door striker on a car?

Door strikers are hooks or bolts that latch up the doors on a vehicle. … The striker plate is made of hardened metal that prevents wear when the door is open and shut many times each day. In addition, the striker plate also helps to hold up the vehicle’s door as the hinge pins wear.

What is the inside of a lock called?

The lock body, or lock cylinder, is the core of a door lock. The lock body turns to engage or disengage the lock’s bolt or latch when the appropriate key is used. In a mechanical lock, the lock body uses a series of spring-loaded pins to allow or stop the turning.

What is an ASA strike?

The term “ASA” is still used by some commercial door manufacturers as follows: ASA: The designation for the 4 7/8˝ high strike with lip (per ANSI A115. 2) with the centerline of the strike located @ 40 5/16” above the bottom of the frame.

Article first time published on

How do I burglar proof my front door?

1. Install Security Locks. Owning security door locks is crucial. …
2. Protect Your Locks with Extra Hardware. …
3. Secure Your Sliding Doors with Key Locks. …
4. Get Stronger Doors. …
5. Make Sure Your Hinges Aren’t Exposed. …
6. Lock Your Doors All The Time.

Why is my door not locking?

Door locking problems almost always originate in the door latch, not the locking mechanism. The striker fails to penetrate into the door jamb because the door or the door jamb has become warped, or the screws have loosened and the plate has moved. … Shut the door and try to lock it. If it won’t lock open the door.

Do door knobs come with strike plates?

Yes, it comes with strike plate and screws.

Why do doors have two locks?

People use two cylinder locks on the door for safety. Double cylinder locks will accept a key on both sides and therefore don’t require any twist knob, this prevents unwanted unlocking of the door by forced access to the interior twist knob.

Can a deadbolt door be kicked in?

Generally speaking, deadbolts are sturdy locks that can withstand kick in and other forced entry attempts. However, a door with a deadbolt can still be kicked down if the door itself is not solid. So, to protect your door against kick in, you want to make sure both the lock and door are of high-quality grade.

How do you lock a door with a penny?

To penny lock a door you simply jam pennies between the door and the hinge from the outside, which prevents the door from opening from the inside. If done properly, the only solution is to remove the door from the hinge. While penny locking a door can work, it will only work with certain door jams.

How do you lock a door with a sock?

1. First, get a sock. Winter socks or any thick and long socks are preferred.
2. Try folding the sock to make a door wedge.
3. After you’ve don’t that, grab the sock. Place it along the side of the door at the top where it opens/closes. …
4. To unlock the door, pull the door and the sock simultaneously.

What is door catch?

The door catch is a fitting to keep a closed door at a normal position and not to naturally open due to a wind pressure.

What is a flush bolt?

Flush bolts are used to secure the inactive leaf of a pair of doors, projecting into the frame head and into a floor strike. … Manual flush bolts and surface bolts are projected and retracted manually, and automatic flush bolts are projected when the active leaf closes and depresses a trigger on the edge of the door.

What is the metal plate on a door called?

Strike Plate. A strike plate is the metal piece attached to the door jamb. As the door closes, the latch mechanism strikes the plate mounted to the jamb and the strike plate catches the mechanism and holds the door closed.

How do locks work?

When the right key slides into a pin-and-tumbler lock, the pointed teeth and notches on the blade of the key allow the spring-loaded pins to move up and down until they line up with a track called the shear line. When the pins align with the shear line, the cylinder can turn and the lock will open.

What is a lock called?

Although there are many types of locks, the four most common are padlocks, deadbolts, knob locks, and levers.
