What is exterior drain tile

Exterior drain tile drains that water away from the soil surrounding the foundation so that it never permeates the wall. … As above, exterior drain tile will prevent ground water from seeping through and causing wetness or structural damage.

What is the purpose of a drain tile?

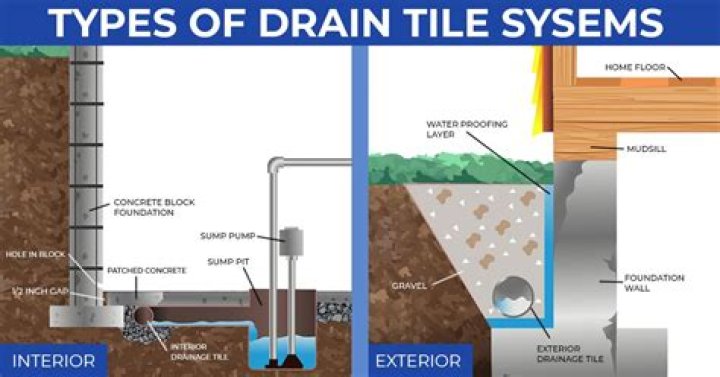

The aim of drain tile in the construction industry is to prevent ground water damage to a building. Drain tile gathers water from around a building and removes it. There are two different types of drain tile systems – internal and external.

Is drain tile inside or outside?

Drain Tile Systems, or more specifically Footing Tile Systems, are installed at the lowest point of the structure, alongside the footing. The piping system can be installed on either the outside of the footing (Exterior Drain Tile) or on the inside of the footing (Interior Drain Tile System).

How do I know if my house has drain tile?

To find out if your home has weeping tile, look in the catch basin (basement floor drain) or sump pump pit. If you have a weeping tile drainage system, you will see a series of 6 inch pipes coming from different directions under the floor. In older homes, you may see a piping system with larger pipes.

Where does drain tile drain to?

Drain tile piping is laid beneath, which leads to a sump pit. When groundwater begins collecting beneath the slab, the drain tile directs it to the sump pit where the sump pump is then able to pump the water away from the house.

Do drain tiles clog?

A clogged drain tile system may cause water to enter your basement. Drain tiles carry excess water away from your home and landscape. … Whether clogged or damaged, the system needs to be fixed, or you risk damage to your home and landscape.

What is the difference between drain tile and French drain?

Drain tile is also embedded in gravel and usually carries ground water to a sump pump for discharge from the home. … A French drain is typically installed just below the surface and is used mainly to move water from low spots or other places where it may collect and saturate the soil.

Are weeping tiles necessary?

Weeping tile is a necessary part of waterproofing a basement at new home construction stage. It collects pooling water at the base of the footing level and drains it to a sump pump before it builds enough pressure to push into the home.

Can drain tile be cleaned out?

Cleaning the tile when it becomes clogged is necessary to retain the functionality. … You can usually clean the foundation drain tile using a sewer snake, routing out the dirt that has gathered in the pipes to make the way clear again for proper water drainage.

What is exterior drain?

Exterior French drains are installed around the outside perimeter of a foundation. The drain consists of a flexible perforated drainpipe buried in a trench at the bottom of the foundation footing. Landscape fiber and gravel are put around the pipe to filter out dirt and sediments.

Article first time published on

How much does installing drain tile cost?

Drain Tile Installation The cost of this installation varies, generally ranging between $8,000 and $15,000 for the whole home.

How much does exterior waterproofing cost?

Exterior Basement Waterproofing Cost. The average cost of waterproofing your basement from the outside with a coating or membrane is $3 to $6 per square foot, which typically includes materials and labor costs.

How effective is drain tile?

Drain tile functions very simply. … Once there it runs down into the pipes and continues downward out to the drainage outlet. This whole system is very efficient at keeping a home’s foundation dry and helping to keep unhelpful water far away from the home as well.

Why do French drains fail?

Over time, a French drain may become clogged. Tiny soil and clay granules slip through the pores of the landscape fabric and gradually build up inside the pipe. Another common cause of French drain clogs is root intrusion from grass, shrubs, and trees.

Can you have drain tile without a sump pump?

If you have a drain tile system installed in your home, don’t take chances. If you don’t have a pump, get one installed. Its the only way that system can operate as designed to keep your basement dry. The cost of a pump and discharge pipe is cheap insurance and will cost a lot less than dealing with a wet basement.

How deep are drain tiles?

If the drain tiles are implemented primarily to protect the foundation from subsurface water, dig the trench up to 6 feet deep. If the primary concern is surface water, a trench only 2 feet deep will suffice. Make sure that the trench extends to a suitable outlet like a ditch, drain field or dry well.

How much does a French drain cost?

French drain Installation PricesMinimum cost$2,000Maximum cost$10,000

Does a French drain need a pipe?

Officially a French drain is a gravel drain with no pipe. The water just collects in and travels through in a gravel or stone filled channel that starts from the surface or just below it. … It is easier to dig and grade a wide French drain, especially when it gets deep.

Do French drains really work?

How Effective is a French Drain System? French drain systems are incredibly effective because, unlike typical surface drains, they collect water over the entire length of the drain as opposed to one dedicated area. The force of gravity helps to guide water along a reliably smooth path to a desired discharge point.

How long do perimeter drains last?

Perimeter drains or weeping tiles can last for decades. If properly installed, you can expect to have a problem free basement for a very long time. Older clay weeping tiles tended to deteriorate, and become clogged with soil and tree roots, but even these systems lasted for many years.

How do I know if I have a drainage problem?

Signs of Landscape Drainage Problems Water pooling beneath downspouts rather than dispersing. Soggy ground, or areas of growth that exceeds the surrounding area. Formation of rivulets and fissures or simple soil erosion. Water stains on the home foundation.

How do you clean outdoor drain tiles?

Consider using a sewer jetter to clean and remove dirt, sand, and yard debris that clog the foundation perimeter drain tile outside your home. A sewer jetter that’s powered by your pressure washer can help you flush away the silt and debris so fewer clogs come back.

How do you tell if your drain tile is clogged?

Sometimes the signs of a clogged drain tile can be noticeable. You may see that water is pooling against your home, suggesting that your tiles are failing. On the interior, water may not be properly channeled, leaving you with a wet basement. If you have a sump pump, check the pit after heavy rainfall.

What are footer drains?

A footing drain, that is an exterior foundation drainage system placed outside the foundation wall near the wall footing, at the level we show, covered with gravel, and if the footing drain going to do anything, it is piped to daylight or to a catch basin that is in turn pumped to daylight or to a storm drain.

How much does weeping tile cost?

According to RCC waterproofing, “The cost of basement waterproofing can typically range between $1000-$25,000 but could go as high as above $50,000 depending on the size of the building.” But for weeping tile only, you can expect about $30 per foot.

Can I connect weeping tile to sewer?

A weeping tile that is directly connected to your home’s sanitary sewer lateral increases the amount of water that enters the municipal sewer system during a heavy rainfall.

Do you need weeping tile around garage?

Weeping Tiles (aka French Drains, aka Perimeter Drains) around your garage collect the groundwater when the water table rises and diverts it to a safe discharge point. They protect your garage foundation from damage and prevent groundwater from leaking and pooling onto the garage floor.

Is exterior waterproofing better than interior?

Although this method does involve some excavation, it can be well worth it. Exterior waterproofing is also more expensive than interior waterproofing, because it requires more work and more material, but it efficiently stops water from getting close to the foundation of your home.

How do Exterior French drains work?

French drains provide an easy channel for water to flow through. Water runs into a gravel-filled trench, then into perforated pipe at the bottom of the trench. Water travels freely through the pipe, which empties a safe distance from the house.

What is French drain tile?

A French drain or weeping tile (also trench drain, filter drain, blind drain, rubble drain, rock drain, drain tile, perimeter drain, land drain, French ditch, sub-surface drain, sub-soil drain, or agricultural drain) is a trench filled with gravel or rock, containing a perforated pipe, or both, that redirects surface …

How much does it cost to put drainage in a yard?

Installing stormwater drainage systems can cost homeowners from $1,800 to upwards of $5,000. Small and simple jobs can go as low as $800, and major projects as high as $8,000.
